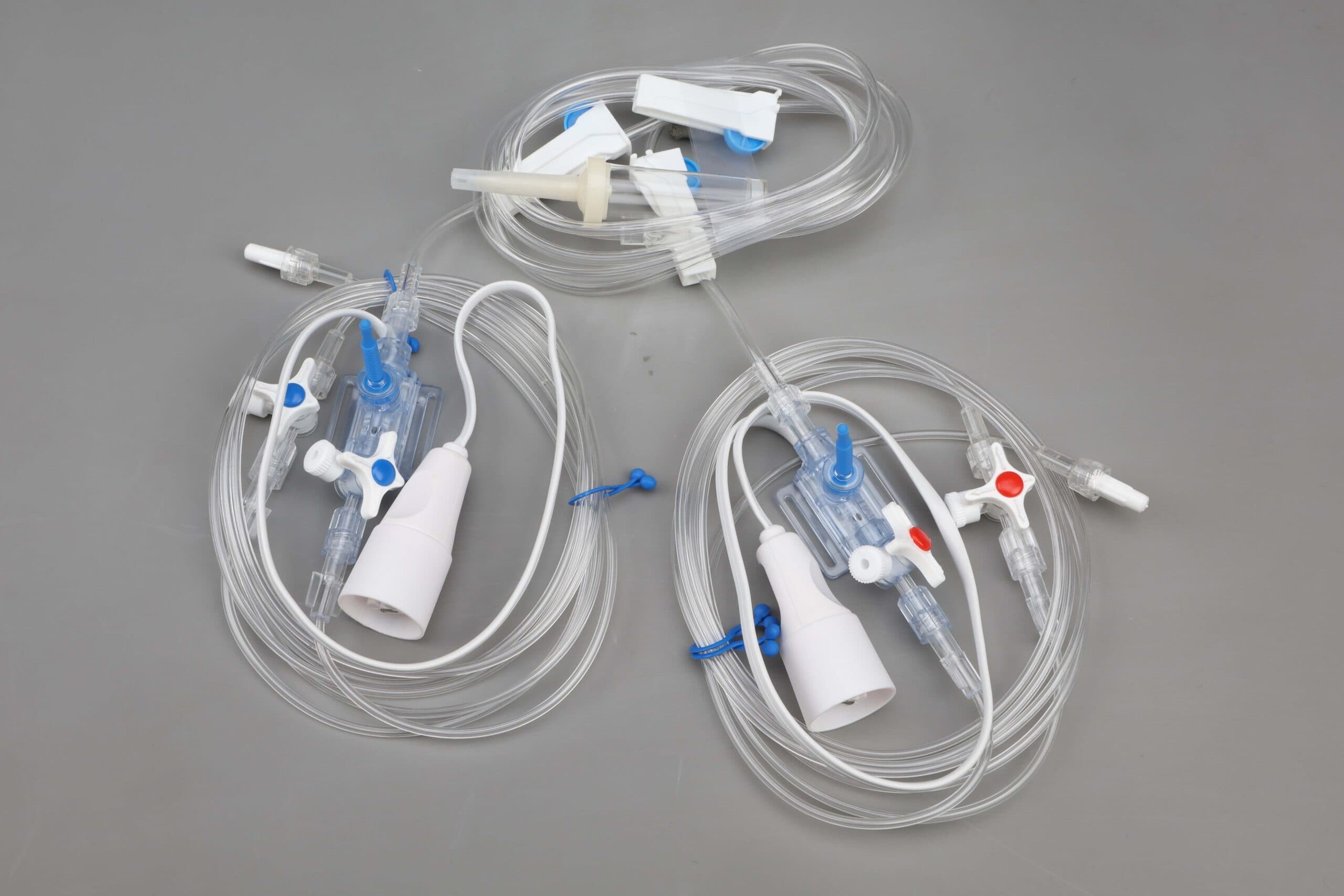

Disposable Pressure Transducer for Urodynamics (UDM-DPT)
Disposable Pressure Transducer dedicated to urodynamic investigations — sensing and recording urine pressures during clinical assessments of LUTS, BOO, BPH and related conditions. Includes a 3-way stopcock with standard and customised combination options.
Available Variants

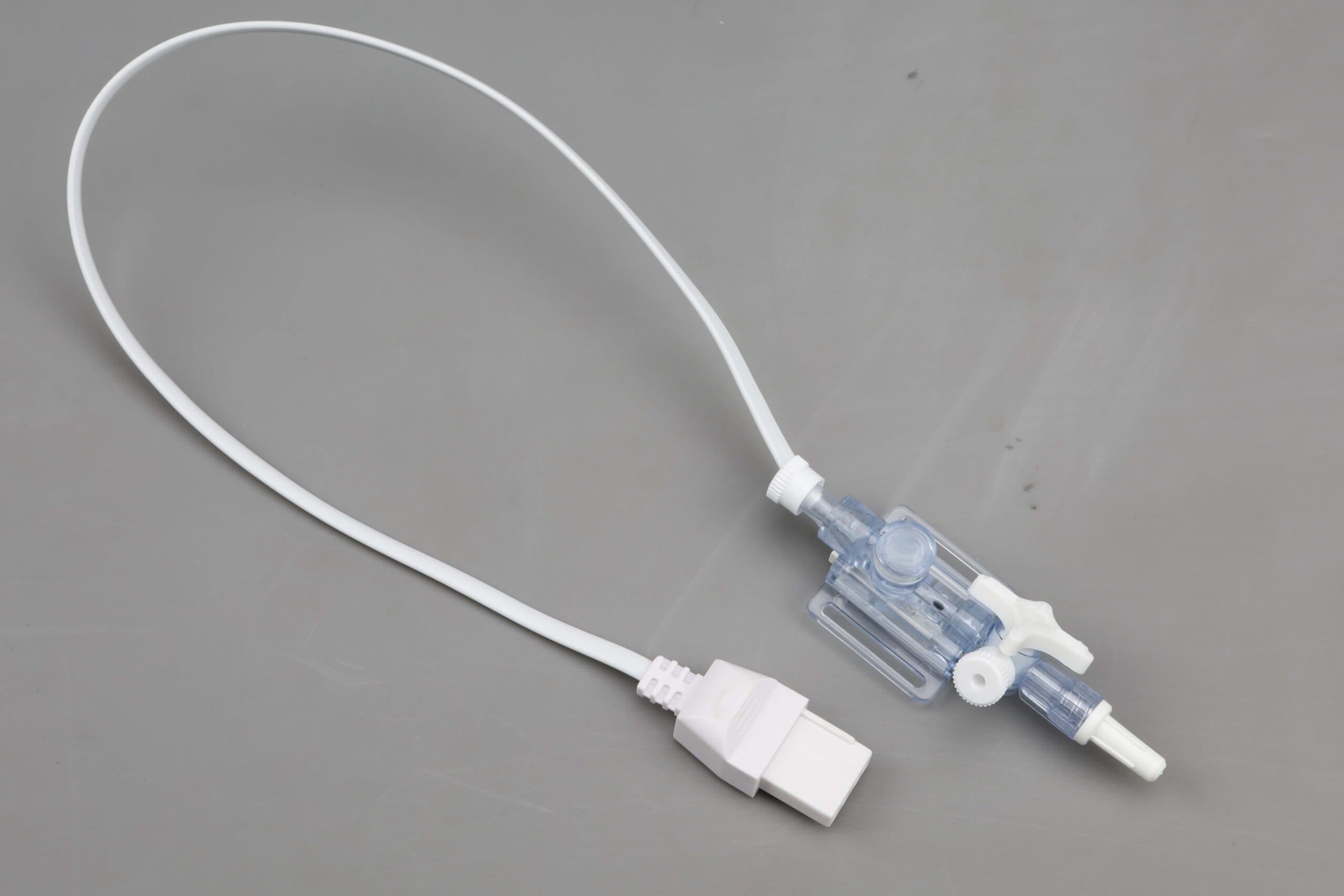

Uro DPT — Type U (Utah Connector)
UDM-DPT with Utah Medical connector end — compatible with Utah Medical urodynamic systems.
Uro DPT — Type C (PVB Codan Connector)
UDM-DPT with PVB Codan connector end — compatible with Codan and other urodynamic systems using the PVB connector standard.
Indications for Use
- Urodynamic investigation of Lower Urinary Tract Symptoms (LUTS)
- Bladder Outlet Obstruction (BOO) and Benign Prostatic Hyperplasia (BPH) assessment
- Cystometry — bladder pressure measurement during filling and voiding
- Urethral pressure profile and pressure-flow studies
- Stress urinary incontinence evaluation
- Compatible with standard urodynamic equipment and urodynamic machines
Key Features & Benefits
✓Dedicated urodynamic DPT — mechanically connects to urinary catheter for direct urine pressure sensing
✓Synchronized pressure transmitting membrane for accurate translation of fluid pressure to electrical signal
✓Clear transparent body for easy detection of air bubbles and trouble-free priming
✓Includes 3-way stopcock for zeroing and fluid path management
✓Available with Utah connector end (Type U) and PVB Codan connector end (Type C) — compatible with major urodynamic systems
✓Standard and customised combination options available
✓Disposable single-use design eliminates cross-contamination risk
✓Meets AAMI specifications: ANSI/AAMI BP22-1994/(R)2006
Technical Specifications
| Operating Pressure | 0 to +300 mmHg |
| Operating Temperature | 15°C to 40°C |
| Storage Temperature | -25°C to +85°C |
| Zero Offset | ±25 mmHg |
| Zero Thermal Drift | ±0.3 mmHg/°C |
| Pressure Accuracy | Exceeds AAMI specifications: ANSI/AAMI BP22-1994/(R)2006 |
| Connector Options | Utah (Type U) or PVB Codan (Type C) |
Material Specifications
| Body / Dome | Polycarbonate |
| Diaphragm Membrane | Polyurethane |
| Connector | High Density Polyethylene (HDPE) |
| Cap | Low Density Polyethylene (LDPE) |
| Seal | Silicone |
| Stopcock | Polycarbonate body — 3-way |
Packing Details
| Primary Pack | Gas permeable membrane sheet & see-through laminated film pouch |
| Secondary Pack | 50 units per carton |
| Tertiary Pack | 200 units (4 cartons per shipping box) |
Regulatory Status
- ✓CE Marked
- ✓ISO 13485
