Pressure Monitoring Lines
Rigid, low-memory, kink-resistant, crystal-clear pressure monitoring lines with precision-calibrated tubing and low priming volumes for accurate transmission of pressure waveforms with minimal dampening or pressure loss.
Available Variants

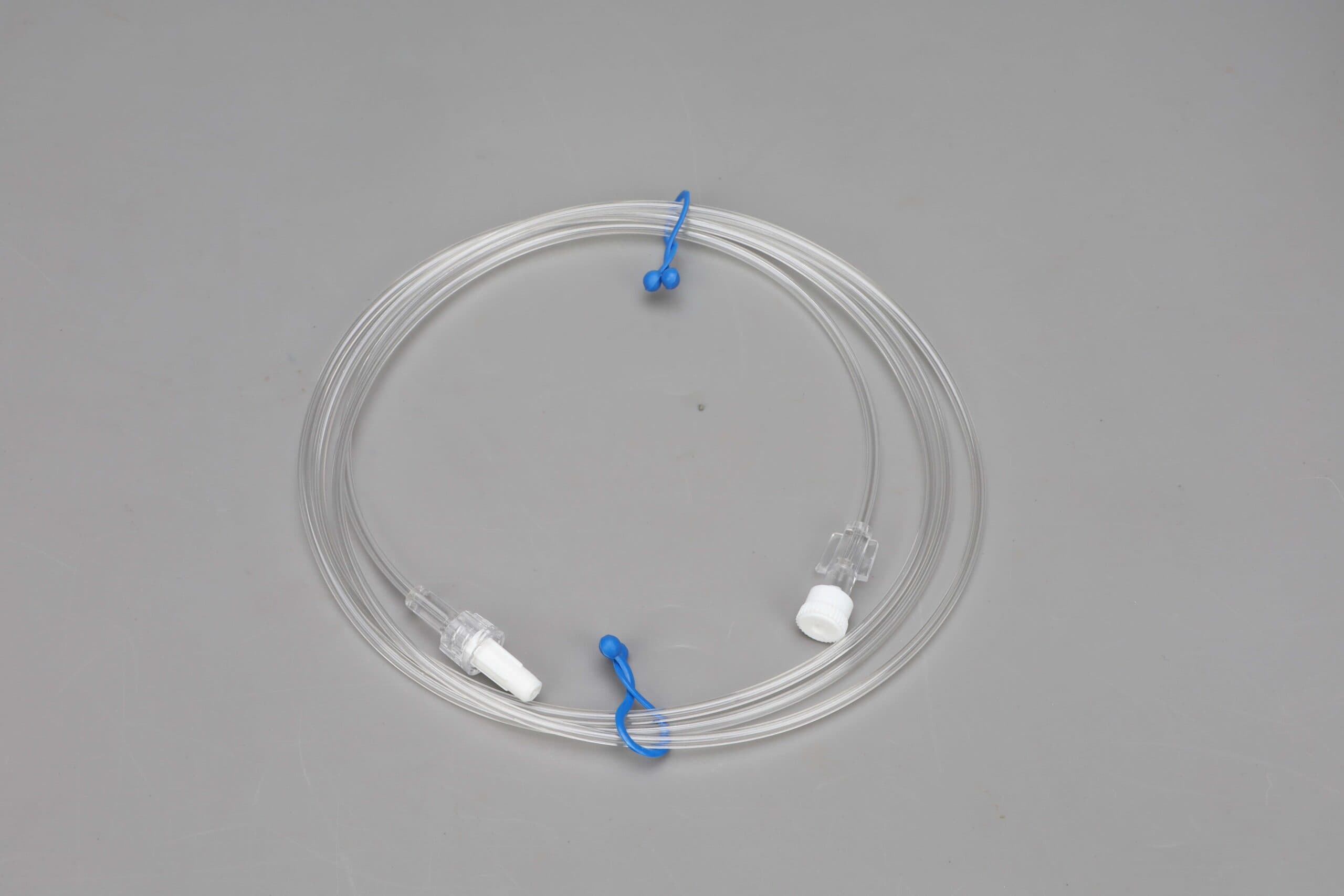

Male-to-Female — Plain
Male luer lock to female luer lock. Available in lengths from 10 cm to 200 cm, clear tube without colour stripe.

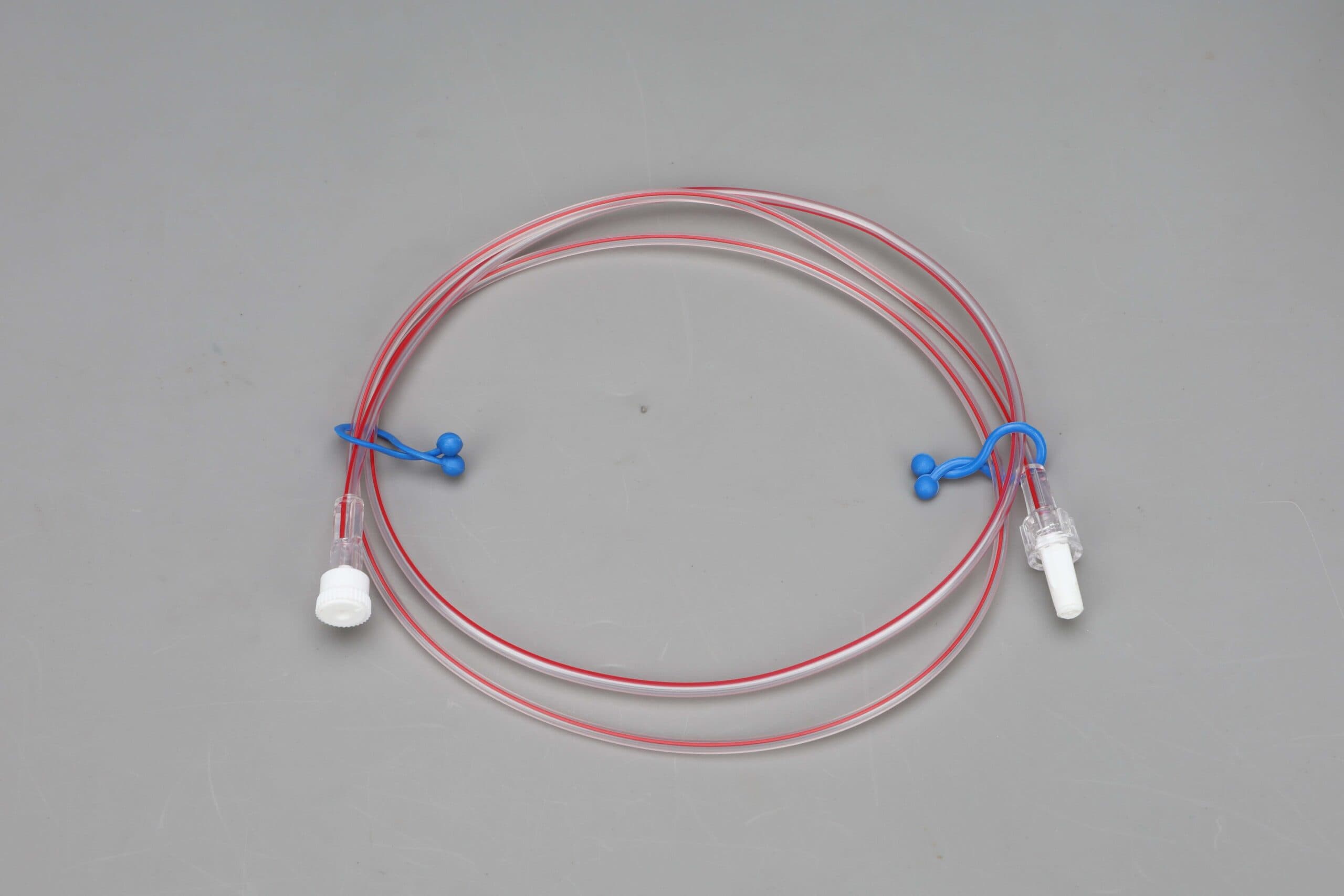

Male-to-Female — Colour Coded
Male luer lock to female luer lock with colour stripe (red, blue or green). Lengths from 10 cm to 200 cm.
Male-to-Male — Plain / Colour Coded
Male luer lock to male luer lock. Available plain or with colour stripe (red, blue or green). Lengths from 10 cm to 200 cm.
Female-to-Female — Plain / Colour Coded
Female luer lock to female luer lock. Available plain or with colour stripe (red, blue or green). Lengths from 10 cm to 200 cm.
Indications for Use
- Invasive arterial blood pressure monitoring in critical and operative care
- Central venous pressure (CVP) monitoring
- Pulmonary artery pressure monitoring
- Connecting arterial & venous catheters to pressure transducers in ICU and operating room settings
Key Features & Benefits
Technical Specifications
| Tube ID / OD | 1.00 / 2.00 mm |
| Length Range | 10 cm to 200 cm |
| Pressure Stability | 5 Bar Hydrostatic |
| End Connectors | Luer Lock — Male-to-Female, Male-to-Male or Female-to-Female |
| Colour Stripe Options | Plain (clear), Red, Blue or Green |
Material Specifications
| Tubing | Medical Grade PVC (DEHP-free), crystal-clear |
| Connectors | Polycarbonate |
| Cap | Low Density Polyethylene (LDPE) |
Packing Details
| Primary Pack | Gas permeable membrane sheet & see-through laminated film pouch |
| Secondary Pack | 25 units per carton |
| Tertiary Pack | 300 units (12 cartons per shipping box) |
Regulatory Status
- ✓CE Marked
- ✓ISO 13485
