CE MarkedISO 13485
Disposable Pressure Transducer Kit for Haemodynamics (HDM-DPT)
Complete disposable pressure transducer kit for invasive haemodynamic pressure monitoring. The kit enables accurate sensing of arterial, venous and pulmonary pressures without interfering with blood flow, with a built-in continuous flush device to keep monitoring lines clear.
Available Variants
Single Disposable Pressure Transducer Kit
Kit with one DPT — for single-channel invasive pressure monitoring (e.g. arterial line).
Double Disposable Pressure Transducer Kit
Kit with two DPTs — for simultaneous dual-channel monitoring (e.g. arterial + CVP).
Triple Disposable Pressure Transducer Kit
Kit with three DPTs — for simultaneous triple-channel monitoring (e.g. arterial + CVP + PA).
Indications for Use
- Invasive haemodynamic pressure monitoring — arterial, venous & pulmonary
- Arterial blood pressure monitoring in critical care and operative settings
- Central venous pressure (CVP) and pulmonary artery pressure monitoring
- Pressure sensing during clinical invasive procedures without interfering with blood flow
Key Features & Benefits

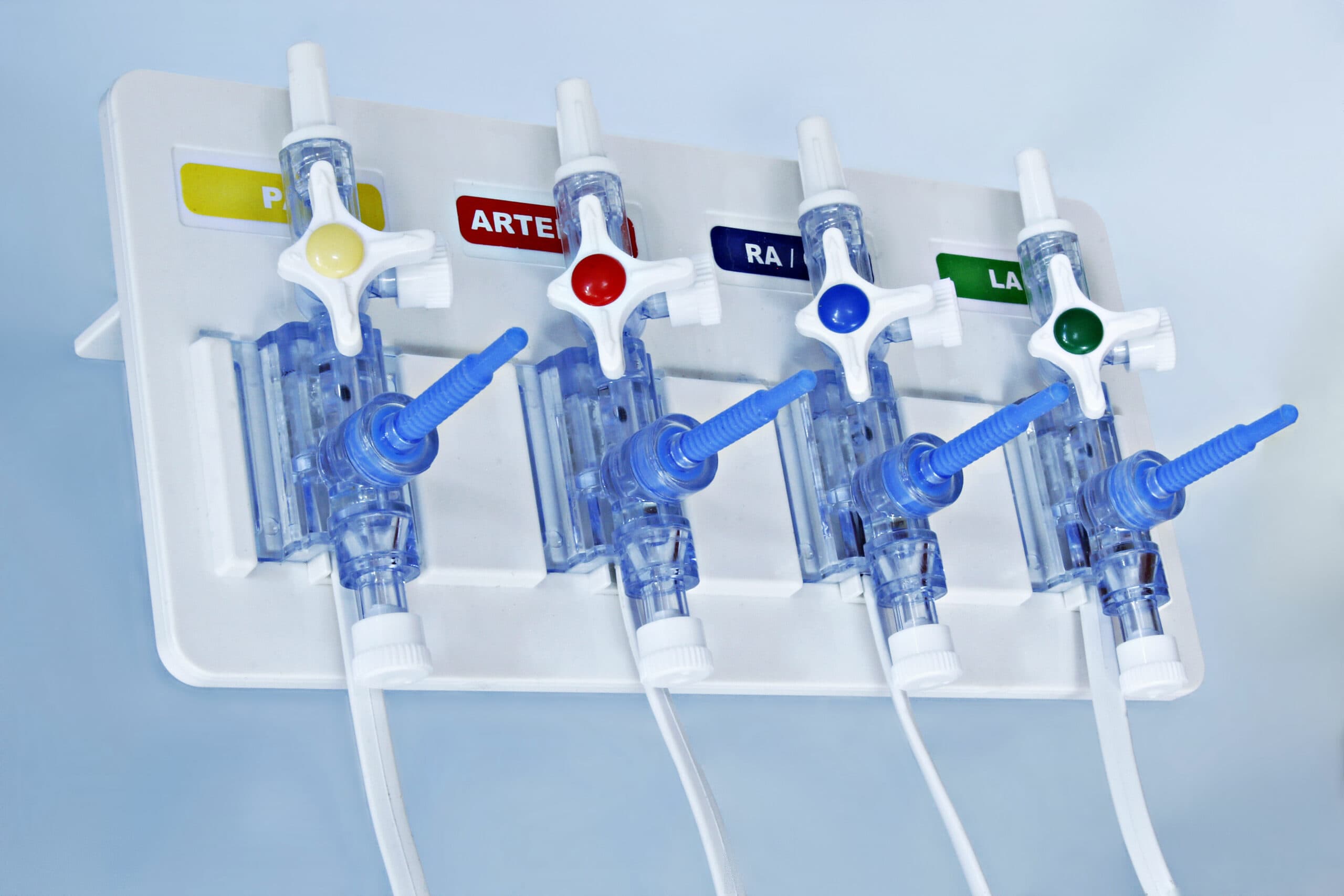

✓Complete pre-assembled kit — Disposable Pressure Transducer with inbuilt Flush Device, Pressure Monitoring Lines, Stopcock, Infusion Set & Dead Ender Caps
✓Inbuilt flush device delivers continuous flow to prevent clotting and maintain line patency
✓Stopcock allows zeroing of the pressure monitor before operation
✓Synchronized pressure transmitting membrane for accurate waveform transmission
✓Clear transparent transducer body for easy detection of air bubbles & trouble-free priming

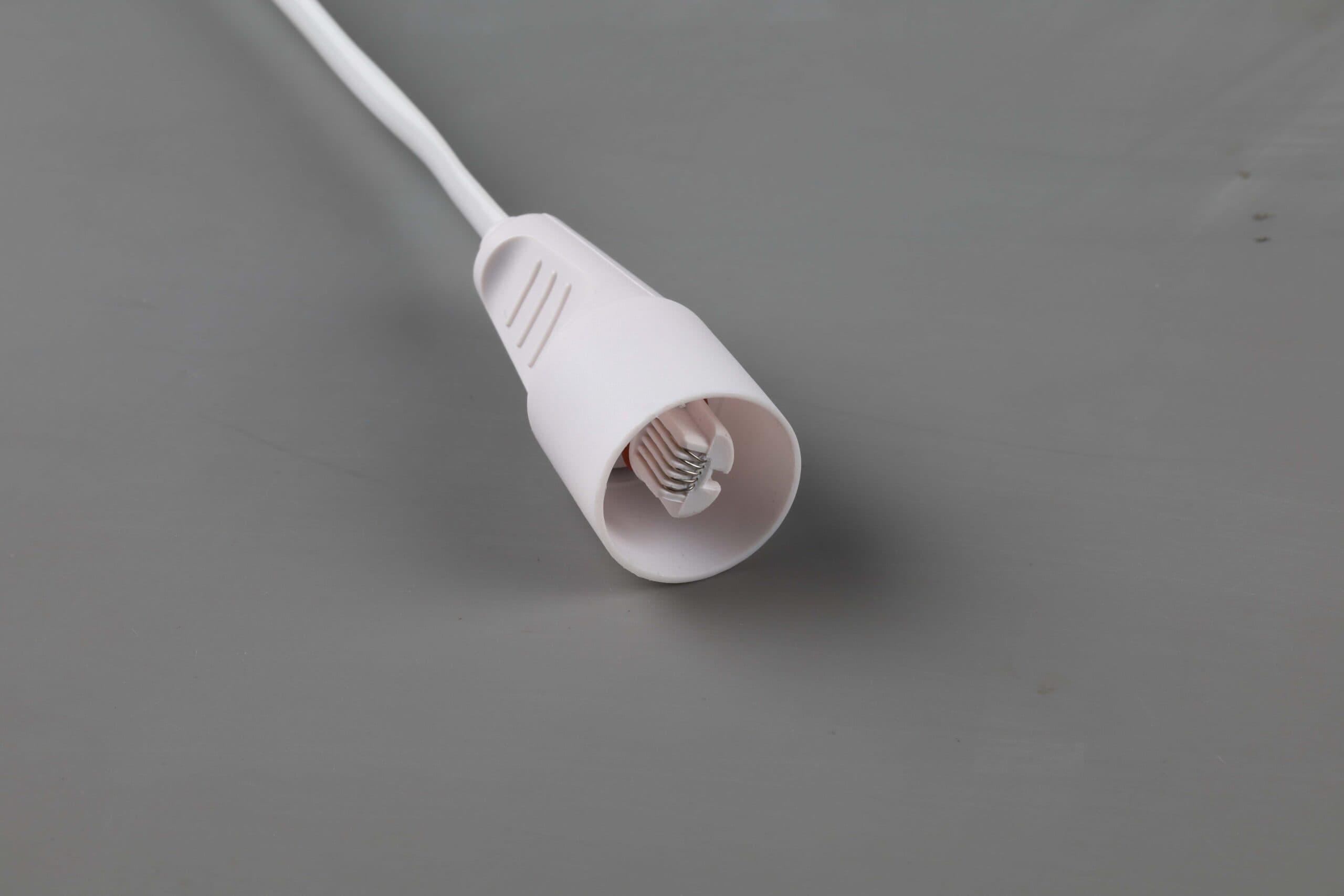

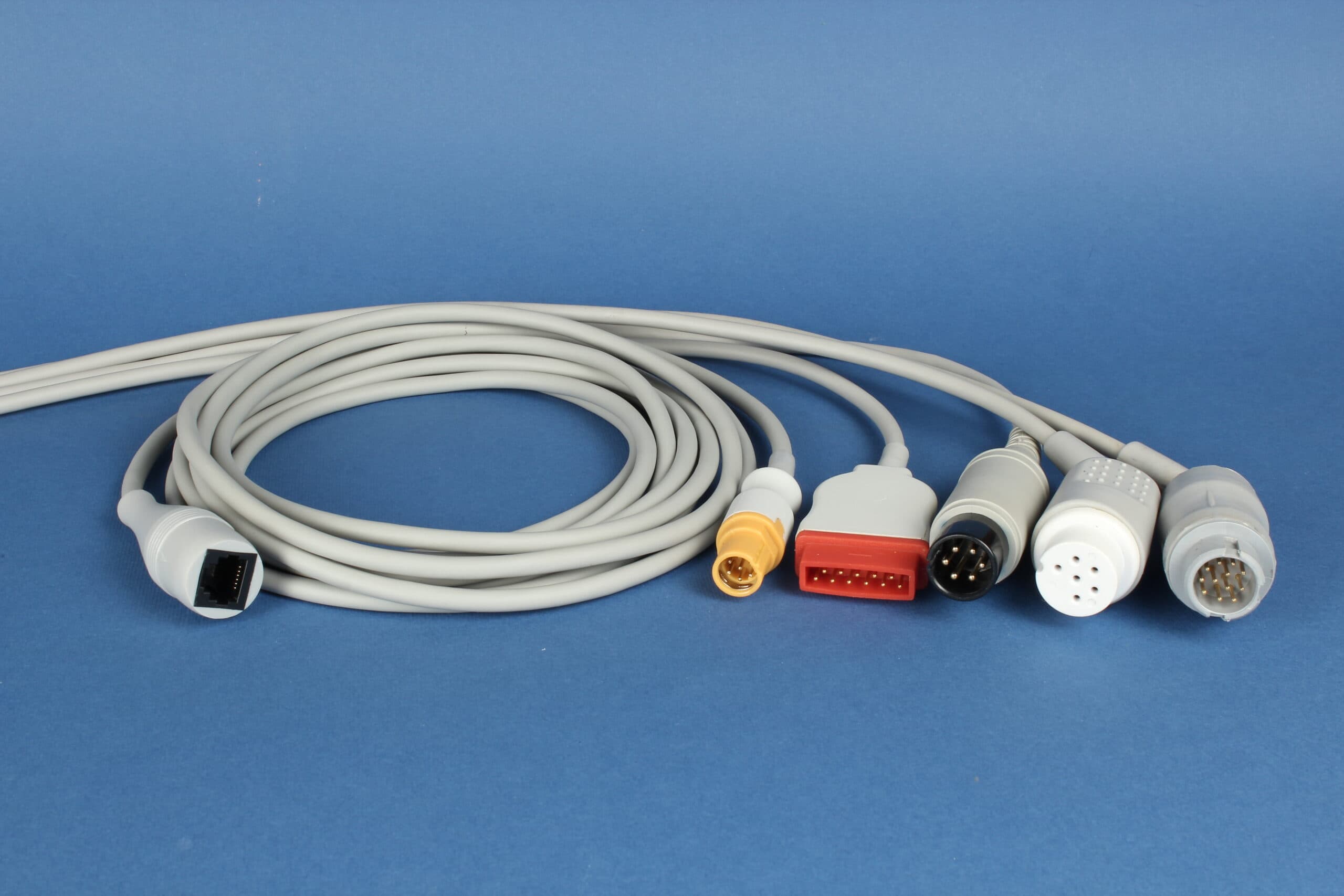

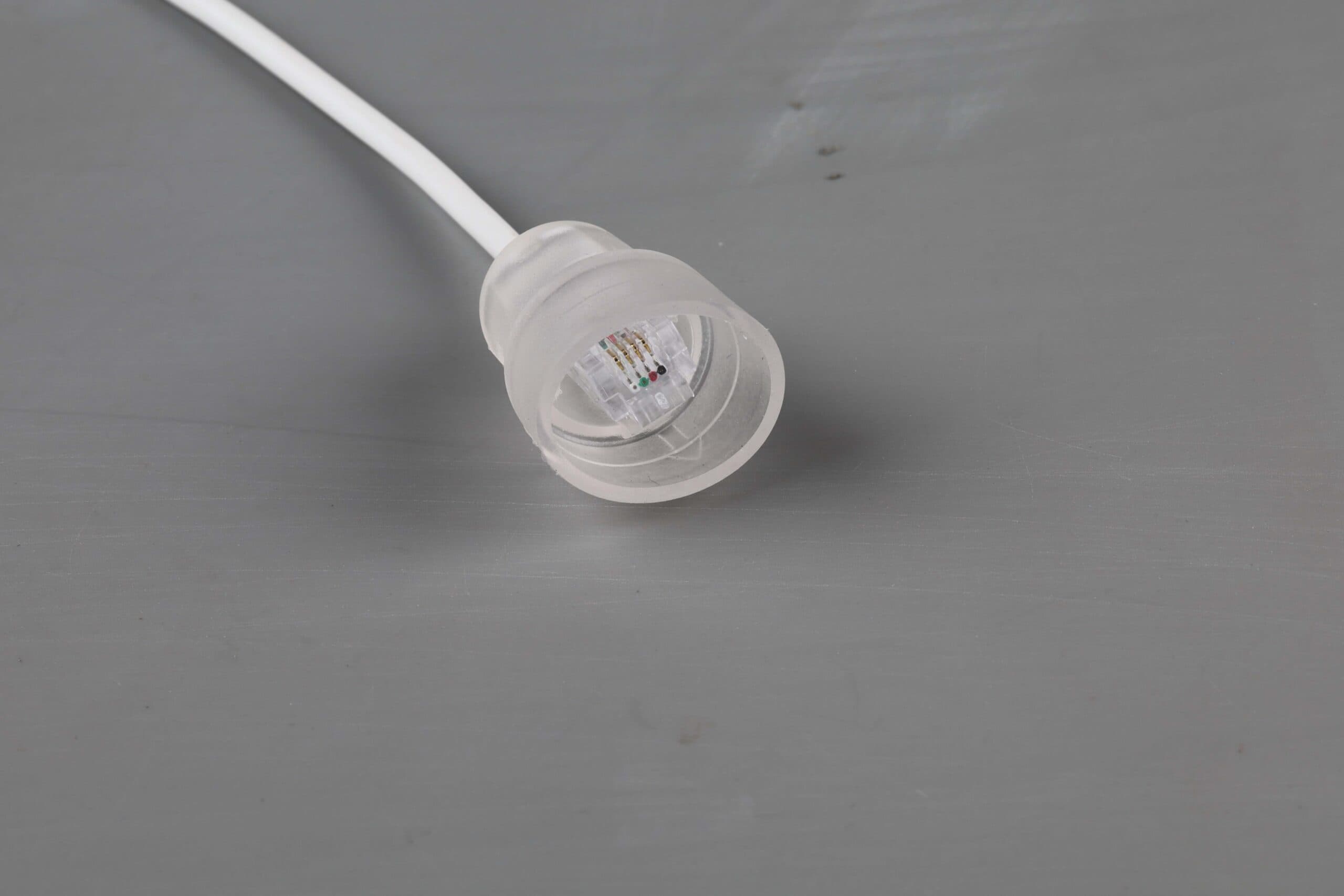

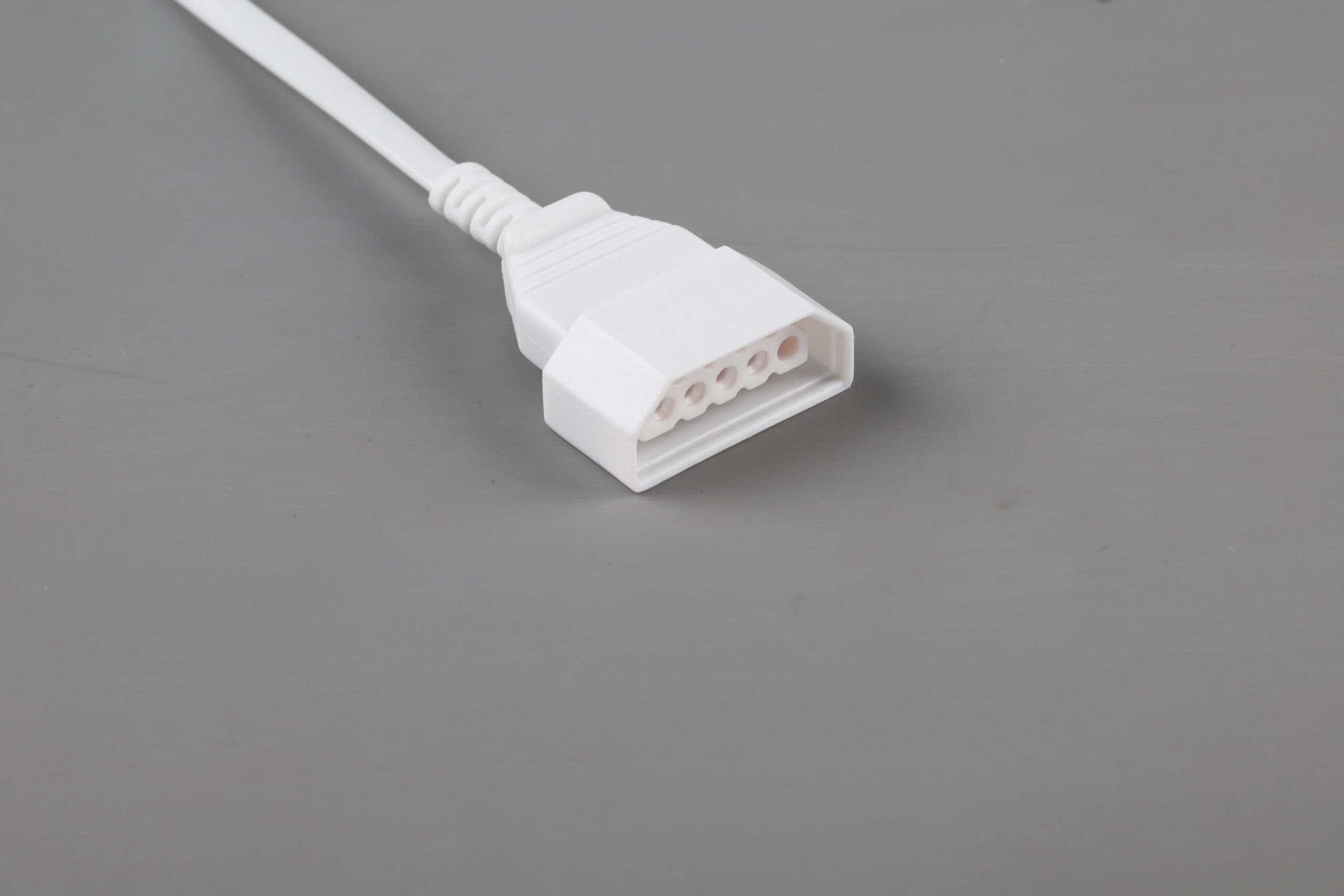

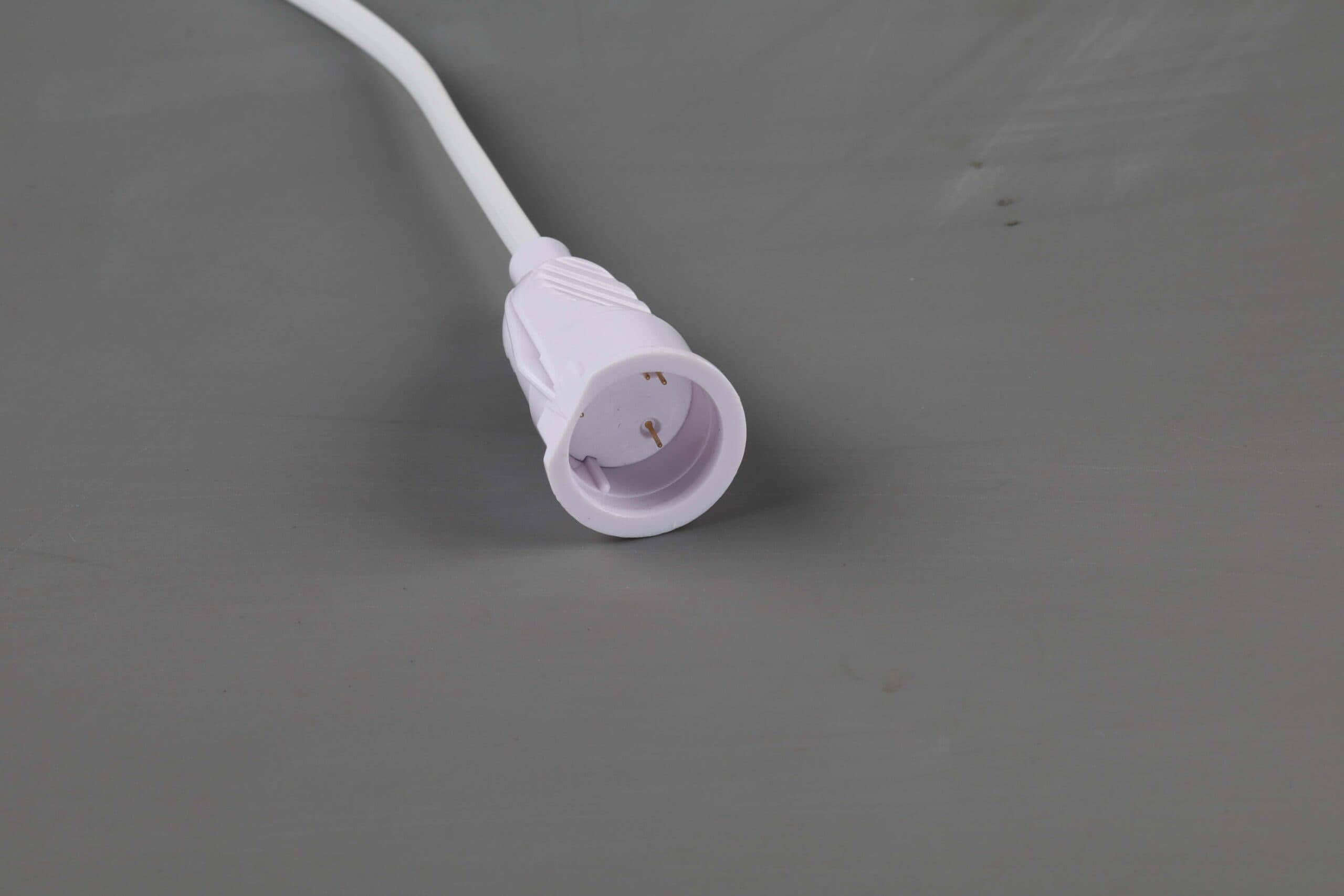

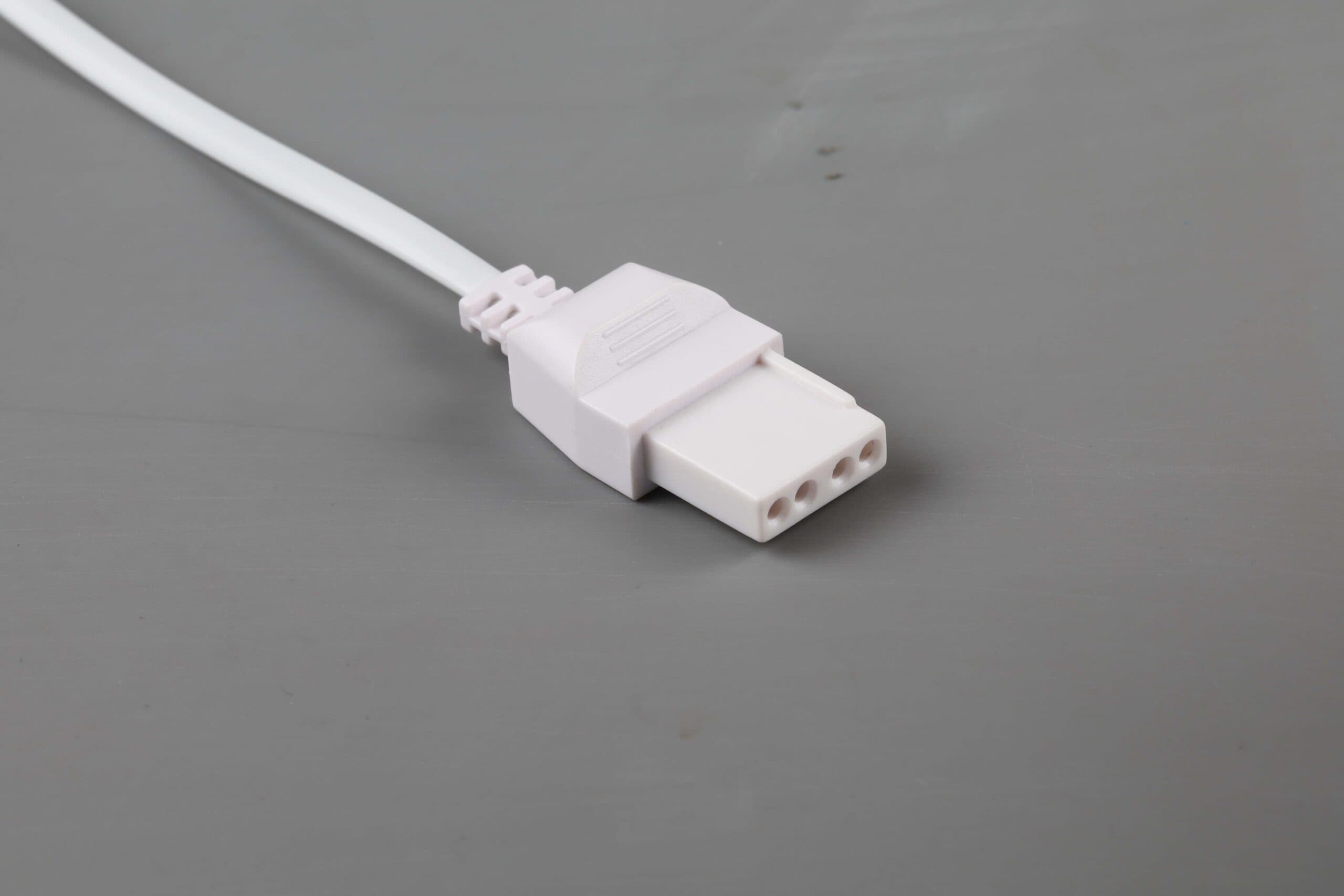

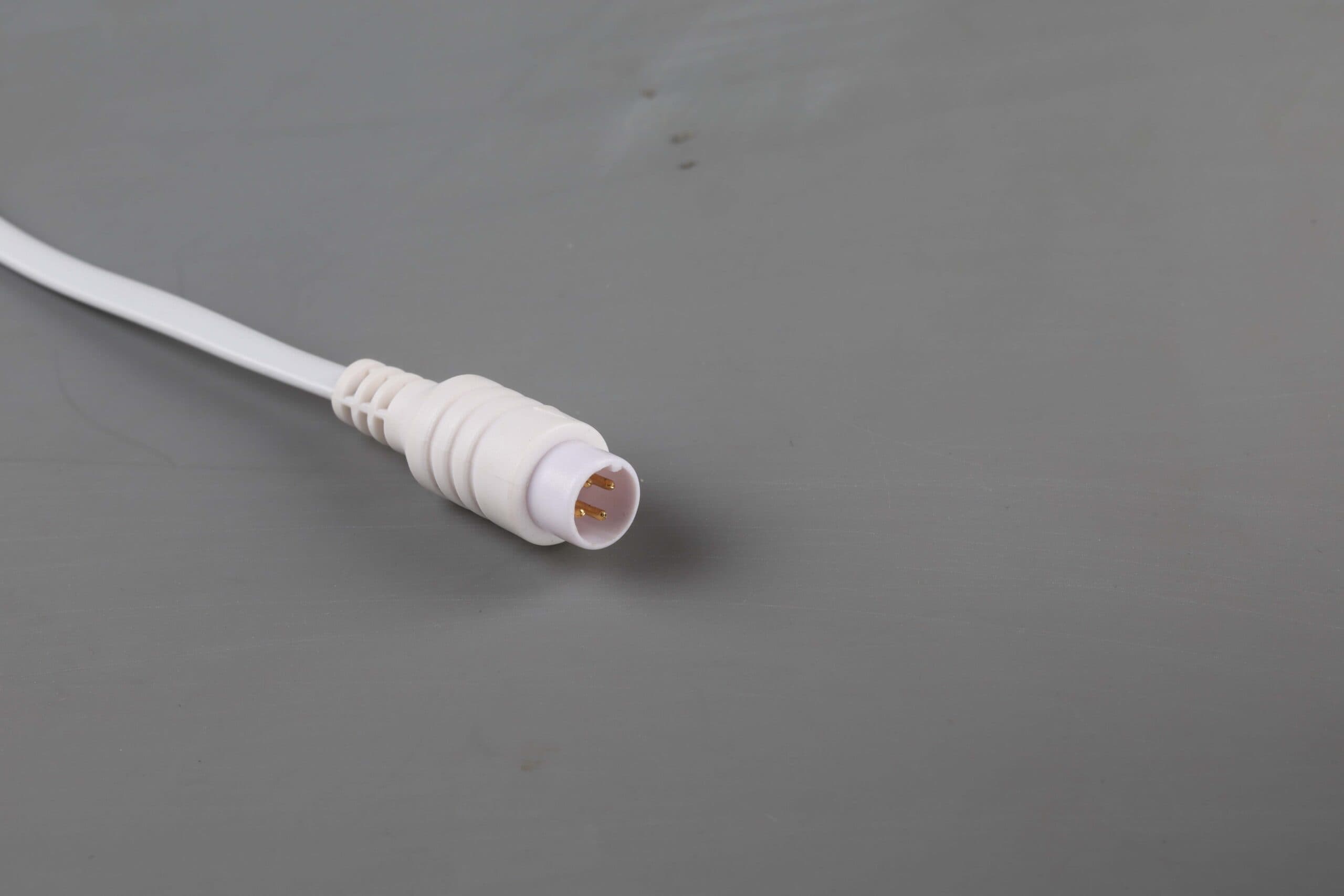

✓Compatible with Edwards (Truwave), Merit Medical (Meritrans DTXPLUS®), Philips, Smiths Medical (TranStar), Utah Medical & other standard pressure monitoring systems
✓Available in Single, Double & Triple transducer configurations
✓Disposable single-use design eliminates cross-contamination risk
✓Meets AAMI specifications: ANSI/AAMI BP22-1994/(R)2006
Technical Specifications
| Operating Pressure | 0 to +300 mmHg |
| Operating Temperature | 15°C to 40°C |
| Storage Temperature | -25°C to +85°C |
| Zero Offset | ±25 mmHg |
| Zero Thermal Drift | ±0.3 mmHg/°C |
| Pressure Accuracy | Exceeds AAMI specifications: ANSI/AAMI BP22-1994/(R)2006 |
| Connector | Universal 10-32 UNF — compatible with all standard IBP monitoring systems |
Material Specifications
| Transducer Body / Dome | Polycarbonate |
| Diaphragm Membrane | Polyurethane |
| Pressure Monitoring Lines | Medical Grade PVC (DEHP-free), crystal-clear |
| Connector | High Density Polyethylene (HDPE) |
| Cap / Dead Ender | Low Density Polyethylene (LDPE) |
| Seal | Silicone |
Packing Details
| Primary Pack | Gas permeable membrane sheet & see-through laminated film pouch |
| Secondary Pack (Single) | 20 units per carton |
| Secondary Pack (Double / Triple) | 10 units per carton |
| Tertiary Pack | As per carton configuration |
Regulatory Status
- ✓CE Marked
- ✓ISO 13485
