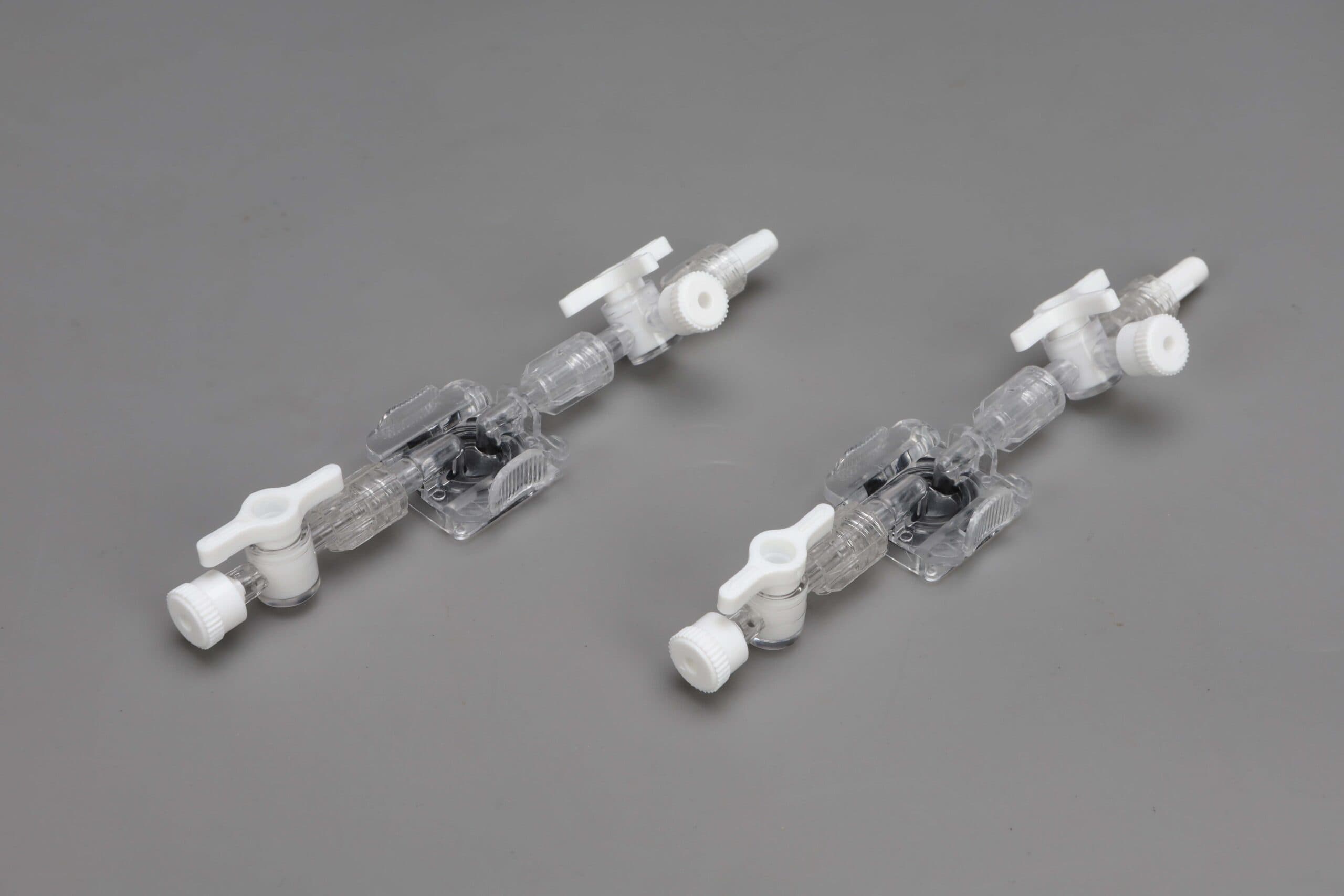

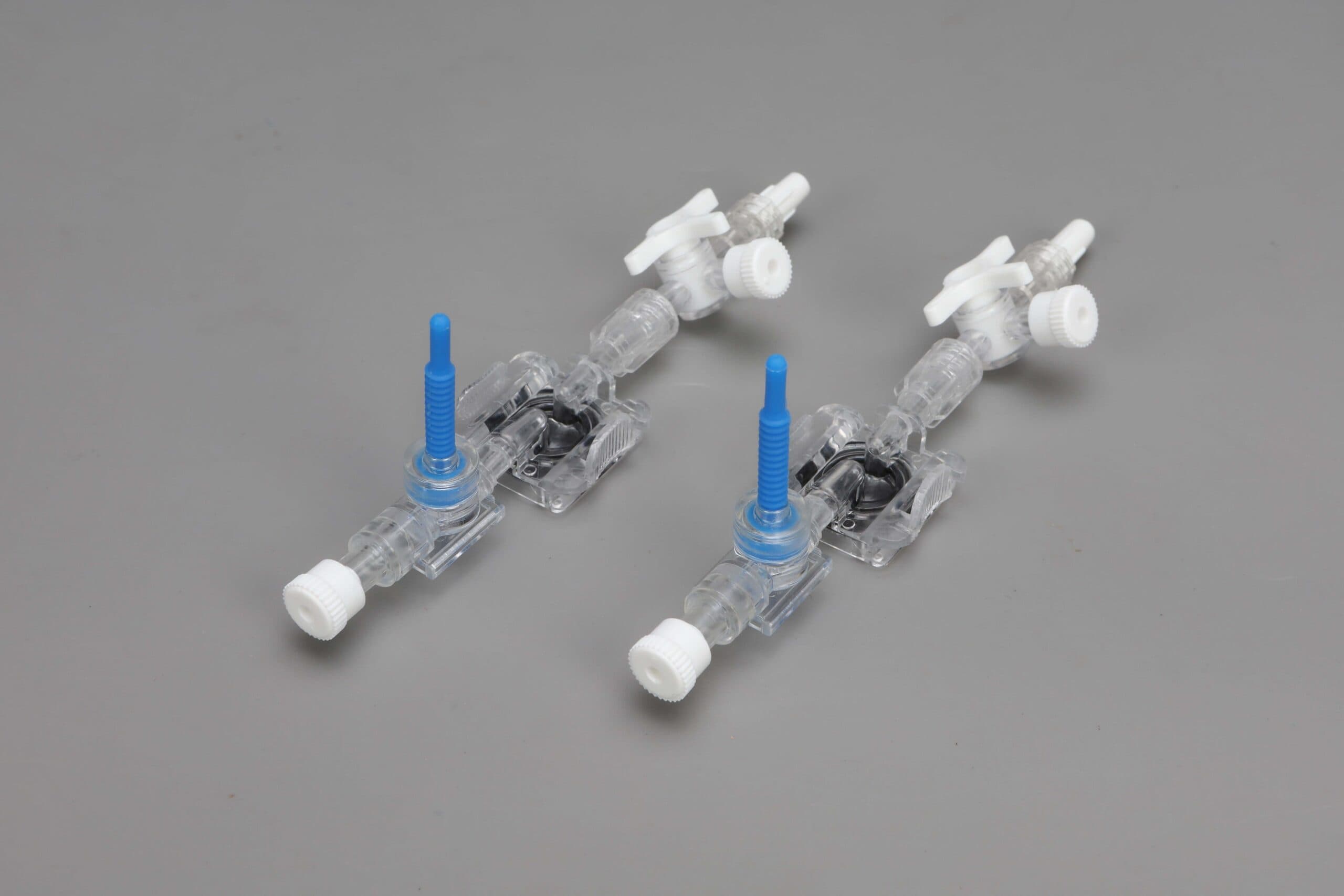

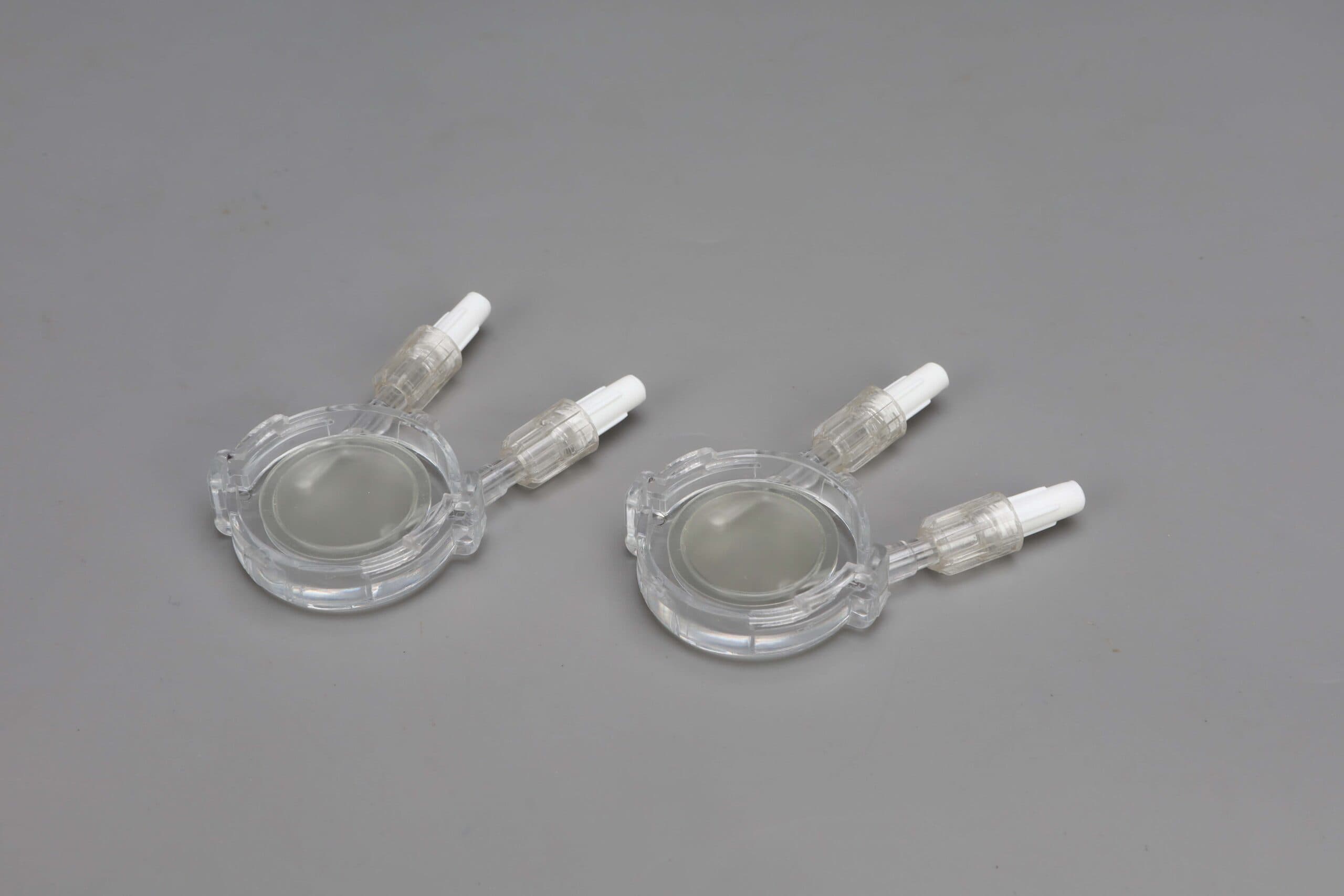

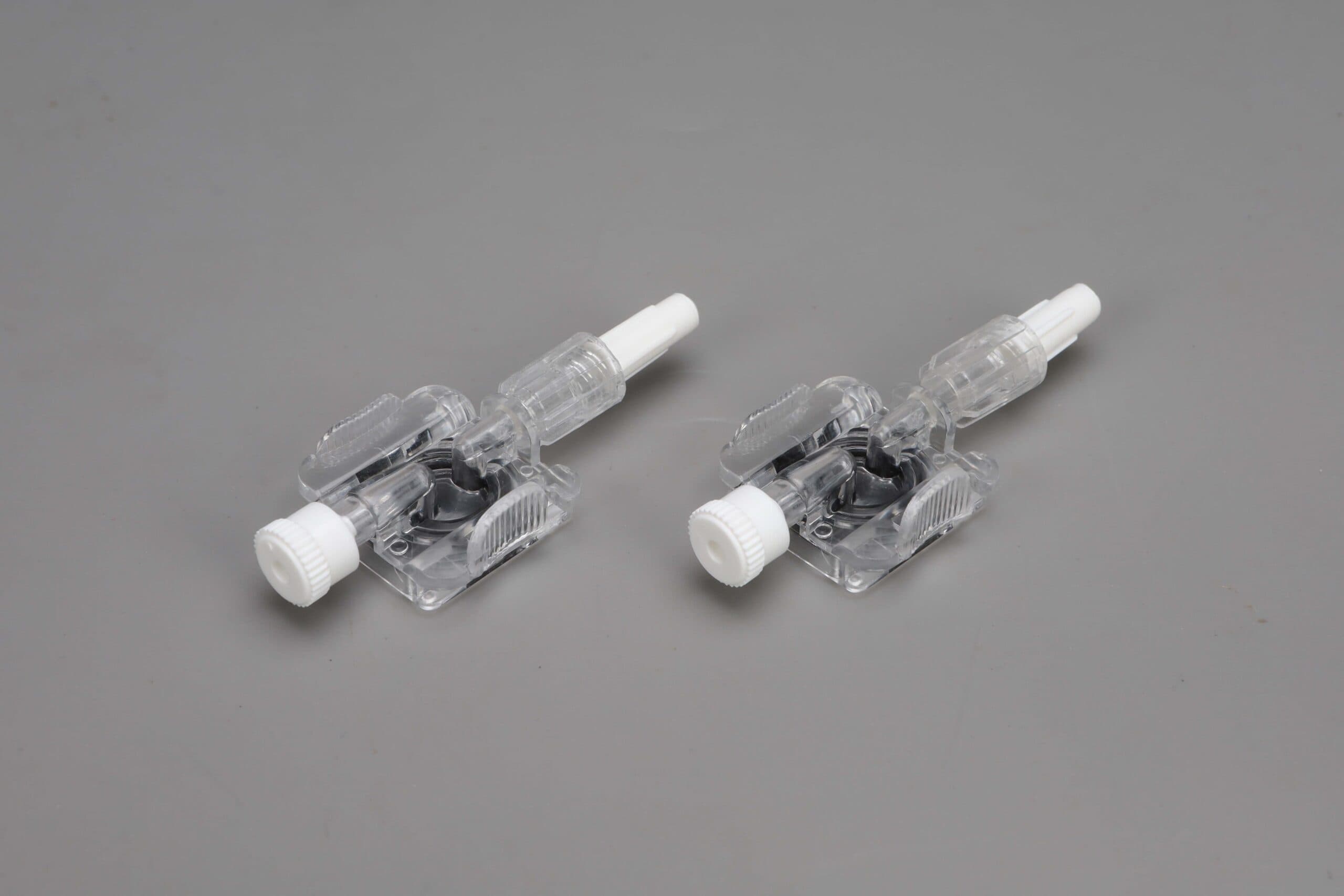

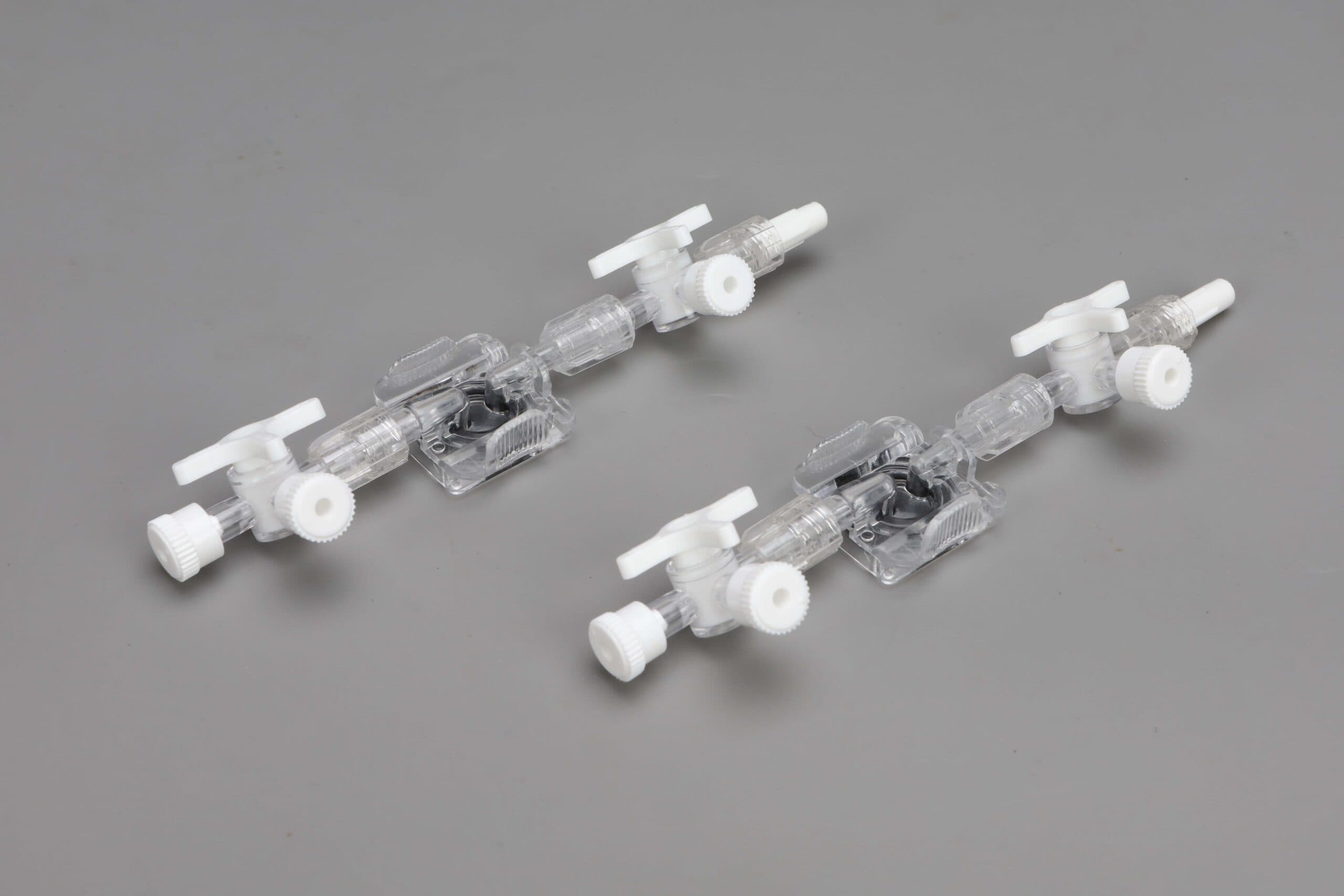

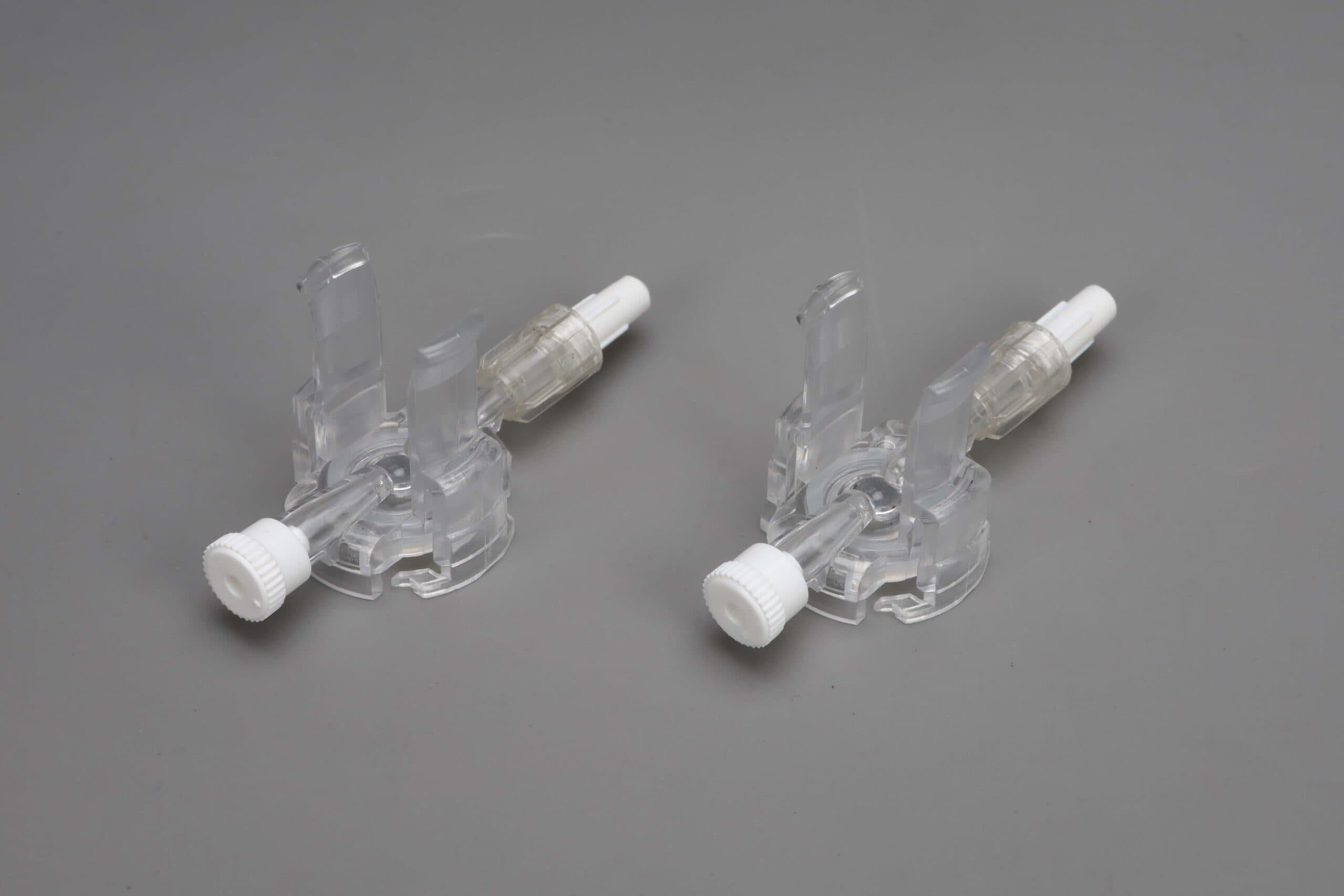

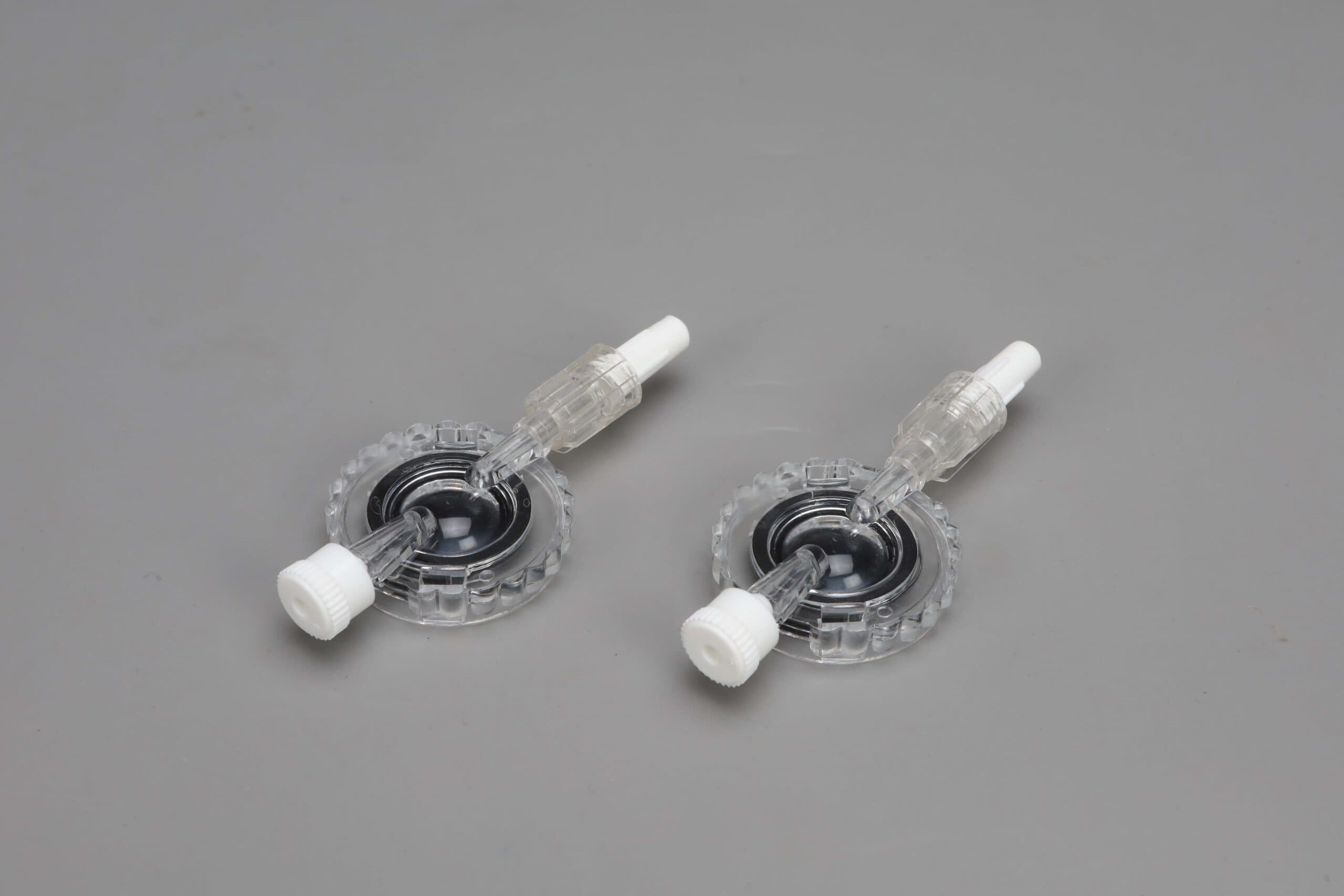

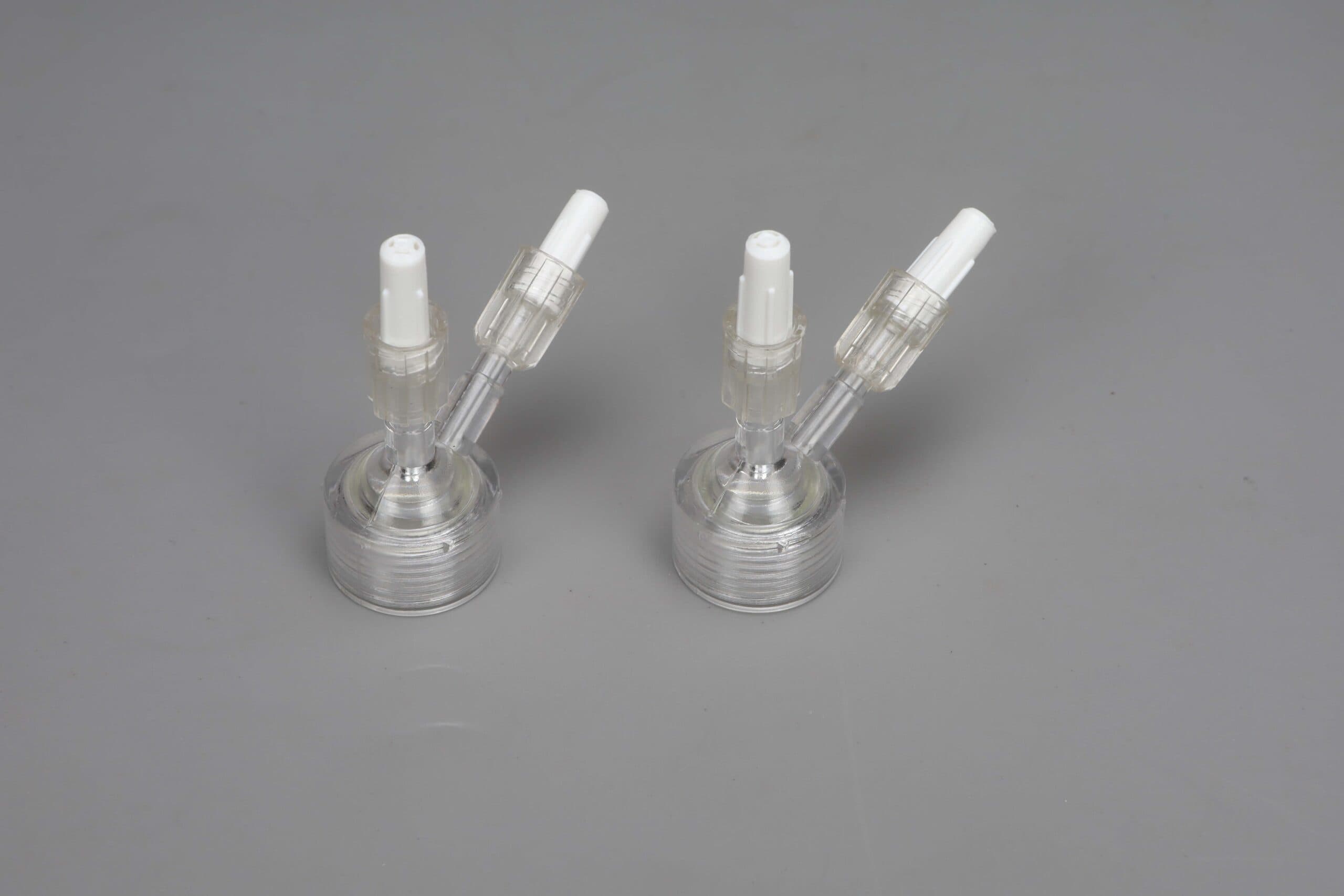

Disposable Pressure Transducer Cartridge & Disposable Pressure Transducer Dome
Disposable diaphragm dome and pressure transducer cartridge for accurate invasive pressure monitoring. The dome's membrane diaphragm acts as an interface between fluid and the transducer, converting pressure waves into electrical impulses displayed as flow pressures on the monitor.
Indications for Use
- Invasive haemodynamic pressure monitoring — arterial, venous & pulmonary
- Urodynamic testing — uroflowmetry, cystometry, urethral pressure profile & pressure-flow studies
- Use with urodynamic equipment — urine flow meters, urodynamic machines & infusion pumps
- Critical care and operative pressure measurement
Key Features & Benefits
✓Synchronized pressure transmitting membrane for accurate transmission of pressure waves
✓Clear transparent body for easy detection of air bubbles & trouble-free quick priming
✓Disposable single-use design eliminates cross-contamination risk
✓Membrane diaphragm snugly fits onto reusable pressure transducer
✓Male & female Luer connectors for secure compatibility
✓Meets AAMI specifications: ANSI/AAMI BP22-1994/(R)2006
Technical Specifications
| Operating Pressure | 0 to +300 mmHg |
| Operating Temperature | 15°C to 40°C |
| Storage Temperature | -25°C to +85°C |
| Zero Offset | ±25 mmHg |
| Zero Thermal Drift | ±0.3 mmHg/°C |
| Pressure Accuracy | Exceeds AAMI specifications: ANSI/AAMI BP22-1994/(R)2006 |
Material Specifications
| Body / Dome | Polycarbonate |
| Connector | High Density Polyethylene (HDPE) |
| Cap | Low Density Polyethylene (LDPE) |
| Diaphragm Membrane | Polyurethane |
| Seal | Silicone |
Packing Details
| Primary Pack | Gas permeable membrane sheet & see-through laminated film pouch |
| Secondary Pack | 50 units per carton |
| Tertiary Pack | 200 units (4 cartons per shipping box) |
Regulatory Status
- ✓CE Marked
- ✓ISO 13485
